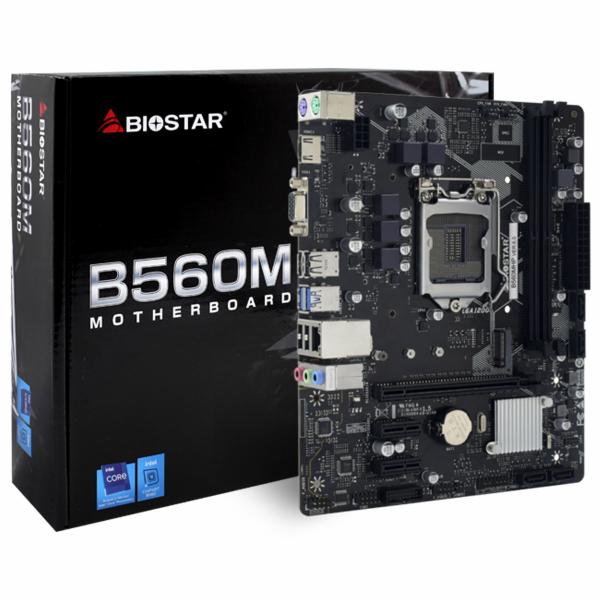

Biostar B560MHP 2.0 Motherboard

The Biostar B560MHP 2.0 is a micro-ATX motherboard designed for 10th and 11th Gen Intel Core processors, offering a solid foundation for everyday computing, office builds, and budget-friendly gaming rigs. With support for PCIe 4.0 and DDR4 memory, it delivers a balanced mix of modern features and practical connectivity for mainstream users.

Key specifications

• Socket: Intel LGA 1200 (compatible with 10th and 11th Gen Intel Core, Pentium, and Celeron processors)
• Chipset: Intel B560
• Form Factor: Micro-ATX
• Memory: 2 x DDR4 DIMM slots, supporting up to 64GB (dual-channel)
• Expansion Slots: 1 x PCIe 4.0 x16 (for 11th Gen CPUs), 1 x PCIe 3.0 x1
• Storage: 1 x M.2 slot (PCIe 3.0 x4), 4 x SATA III 6Gb/s ports
• USB Ports (rear I/O): 4 x USB 3.2 Gen 1, 2 x USB 2.0
• Video Outputs: 1 x HDMI, 1 x VGA (requires CPU with integrated graphics)
• LAN: 1 x Realtek RTL8111H Gigabit Ethernet
• Audio: Realtek ALC897 7.1-channel HD audio codec

Connectivity & Features

• M.2 Slot: Supports PCIe 3.0 x4 SSDs for fast boot and load times
• USB Headers: 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers for front-panel connectivity
• Fan Headers: 1 x CPU fan header, 2 x system fan headers
• BIOS: 128MB flash ROM, UEFI interface with graphical setup
• Operating System Support: Windows 10/11 64-bit

Additional Notes

• PCIe 4.0 support is available only when using an 11th Gen Intel Core processor; with 10th Gen CPUs, the x16 slot operates at PCIe 3.0.
• For video output, a processor with integrated graphics (e.g., Intel UHD Graphics) is required; discrete graphics cards are supported via the PCIe x16 slot.
• This board does not support CPU overclocking, but memory overclocking (XMP) is available.
