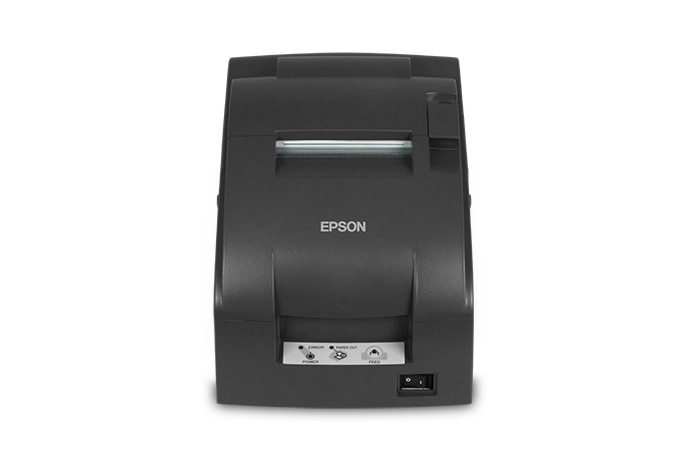

Epson TMU-220II POS Printer

The Epson TM-U220II is a compact and reliable 9-pin dot matrix printer designed specifically for POS and receipt-printing applications. It is an excellent choice for retail counters, restaurants, and other businesses that need fast, durable, and cost-effective receipt printing.

Key specifications

• Print method: 9-pin serial impact dot matrix
• Print speed: Up to 4.7 lines per second (at 40 columns, 6.7 cpi)
• Print columns: 40 or 42 columns (depending on font and character pitch)
• Character size: Font A (12 x 24), Font B (9 x 17), and optional Font C (9 x 24)
• Paper width: 76mm (3 inches) roll paper
• Copy capacity: Original plus one copy (using carbon-backed paper)

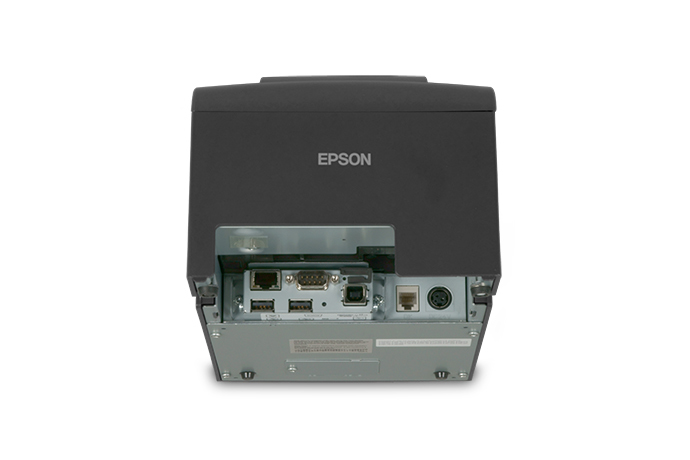

• Interface options: Serial (RS-232C), Parallel (IEEE 1284), or USB (depending on model)
• Reliability: MCBF (Mean Cycles Between Failures) of 18 million lines
• Auto-cutter: Available on select models (partial cut)

Durability and ease of use

Built for high-volume environments, the TM-U220II features a rugged design with a long service life. Its drop-in paper loading makes it simple to replace rolls, while the optional auto-cutter helps streamline transactions. The printer is also compatible with Epson's standard ESC/POS command set, ensuring easy integration into existing POS systems.

Connectivity and compatibility

With multiple interface options, the TM-U220II can be easily connected to a wide range of POS terminals, cash registers, and computers. It supports both Windows and Linux operating systems, making it a flexible solution for various business setups.
