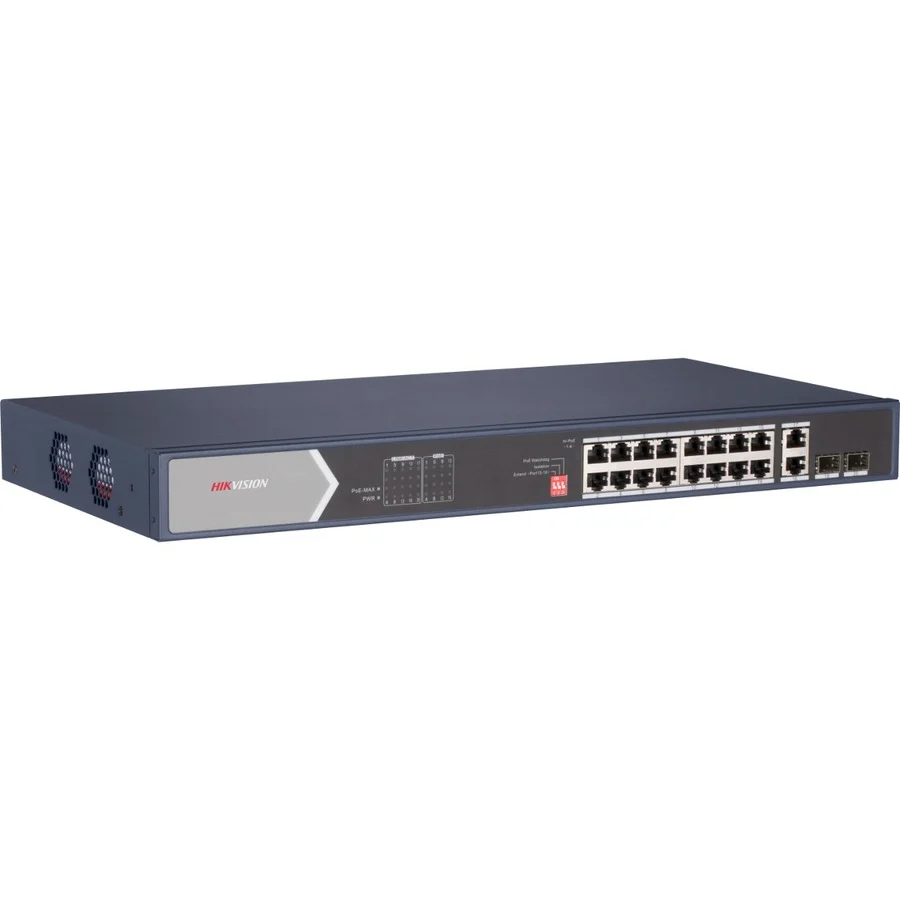

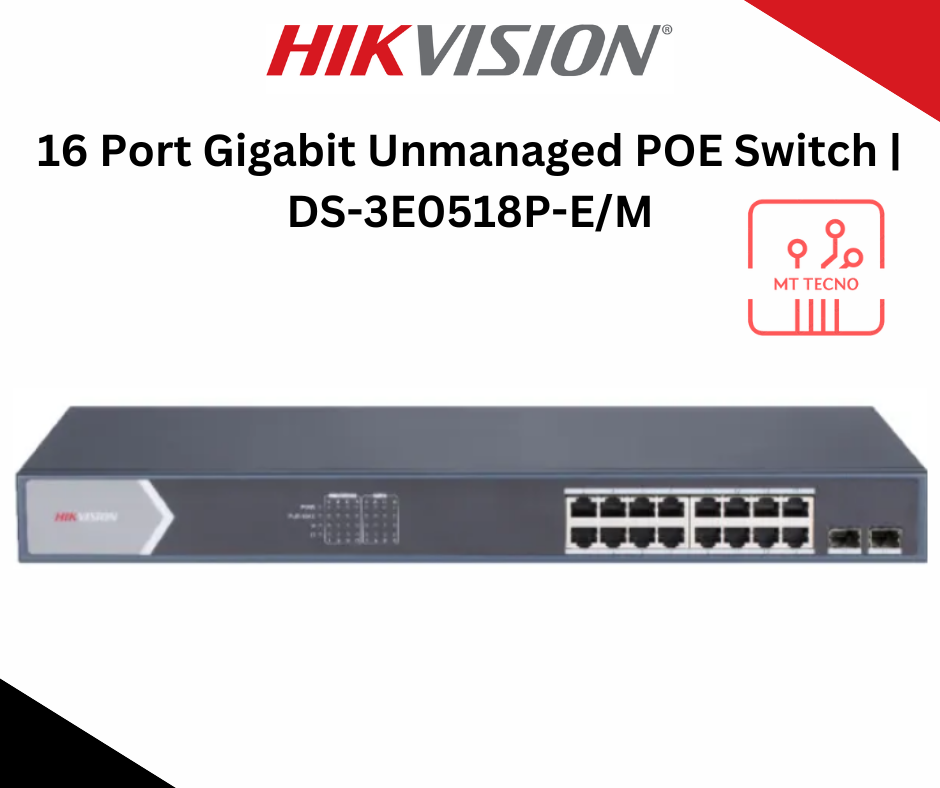

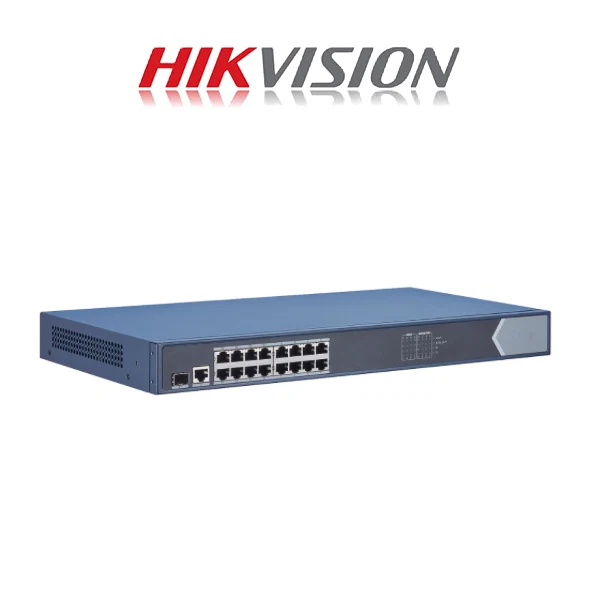

Hikvision 16 ports Gigabit PoE Unmanaged Switch

The Hikvision 16-port Gigabit PoE Unmanaged Switch is a plug-and-play networking solution designed for small to medium CCTV installations, IP camera deployments, and office networks. It delivers reliable power and data over a single Ethernet cable, making it an ideal choice for users who need a simple, cost-effective way to expand their surveillance system without complex configuration.

Key specifications

• Ports: 16× Gigabit PoE ports (10/100/1000 Mbps)
• PoE Standard: IEEE 802.3af/at (PoE/PoE+)
• PoE Power Budget: Up to 250W total (varies by model)
• Switching Capacity: 32 Gbps
• Packet Forwarding Rate: 23.8 Mpps
• MAC Address Table: 8K entries
• Mounting: Rack-mountable (19-inch)
• Operating Temperature: 0°C to 40°C

Design & Usability

This unmanaged switch requires zero setup—simply connect your IP cameras or other PoE devices, and it automatically negotiates power and data. Its sturdy metal housing and rack-mountable design make it suitable for server rooms, network cabinets, or wall-mounted installations. LED indicators on each port provide quick status checks for link activity and PoE power delivery.

Compatibility

Works with all standard IP cameras, NVRs, access points, and other network devices that support IEEE 802.3af/at PoE. Backward compatible with 10/100 Mbps devices, ensuring flexibility for mixed-speed networks.
