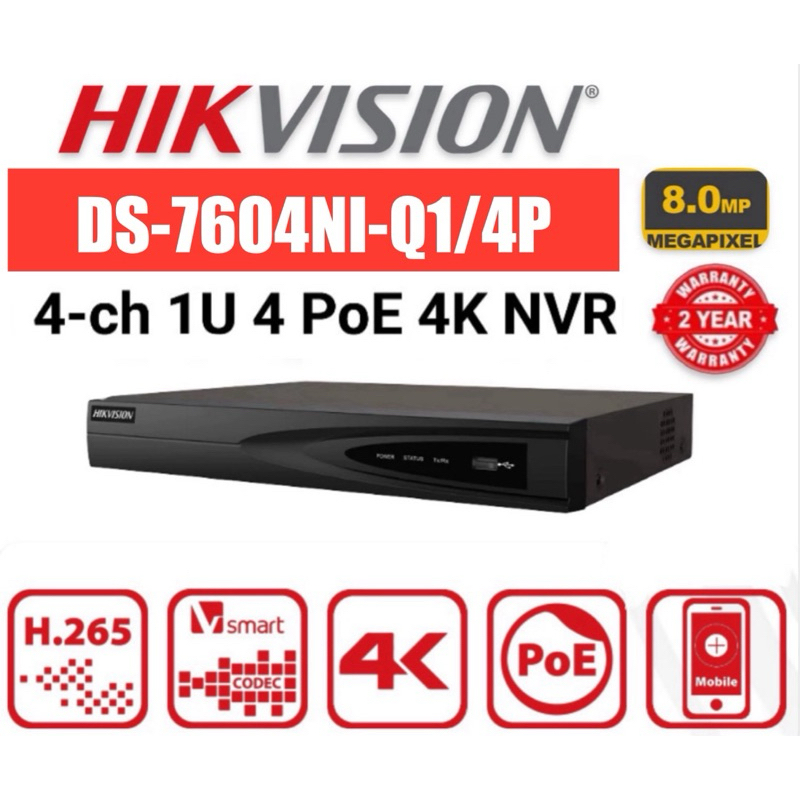

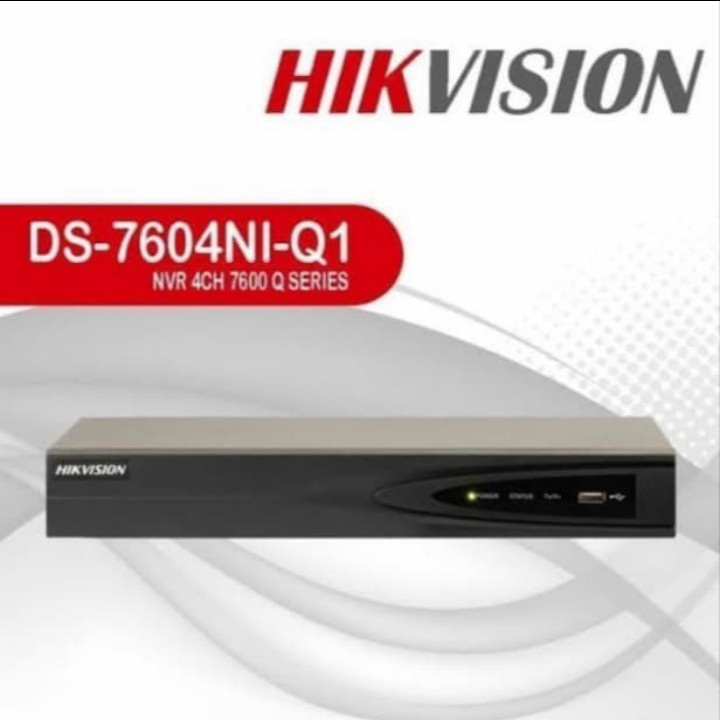

Hikvision 4CH DS-7604NI NVR

The Hikvision DS-7604NI is a compact, 4-channel network video recorder (NVR) designed for small to medium-sized surveillance setups. It is an ideal solution for retail shops, small offices, or residential properties looking for a reliable, high-definition IP camera recording system with advanced analytics and easy remote access.

Key specifications

• Channels: 4-channel IP video input
• Recording Resolution: Up to 8 MP (4K) per channel
• HDMI / VGA Output: Simultaneous HDMI and VGA output for local monitoring
• Hard Drive Support: 1 SATA interface, up to 8 TB capacity (not included)
• Compression: H.265+ / H.265 / H.264+ / H.264 video compression for efficient storage
• Network: 1x RJ45 10/100 Mbps Ethernet port
• USB Ports: 2x USB 2.0 for backup and mouse operation
• Audio: 1-channel RCA audio input and 1-channel RCA audio output (for select camera models)
• Remote Access: Hik-Connect app support for live view and playback on mobile devices

Smart Features

• Supports motion detection, tamper alarm, and video loss detection
• Compatible with Hikvision IP cameras and select third-party ONVIF cameras
• Dual-stream recording and playback for bandwidth efficiency
• Search and playback by exact time, event, or smart analytics

Physical & Environmental

• Compact 1U chassis design for easy installation
• Operating temperature: -10°C to 55°C (14°F to 131°F)
• Power supply: 12V DC
• Dimensions: 315 mm × 240 mm × 48 mm (approx.)
