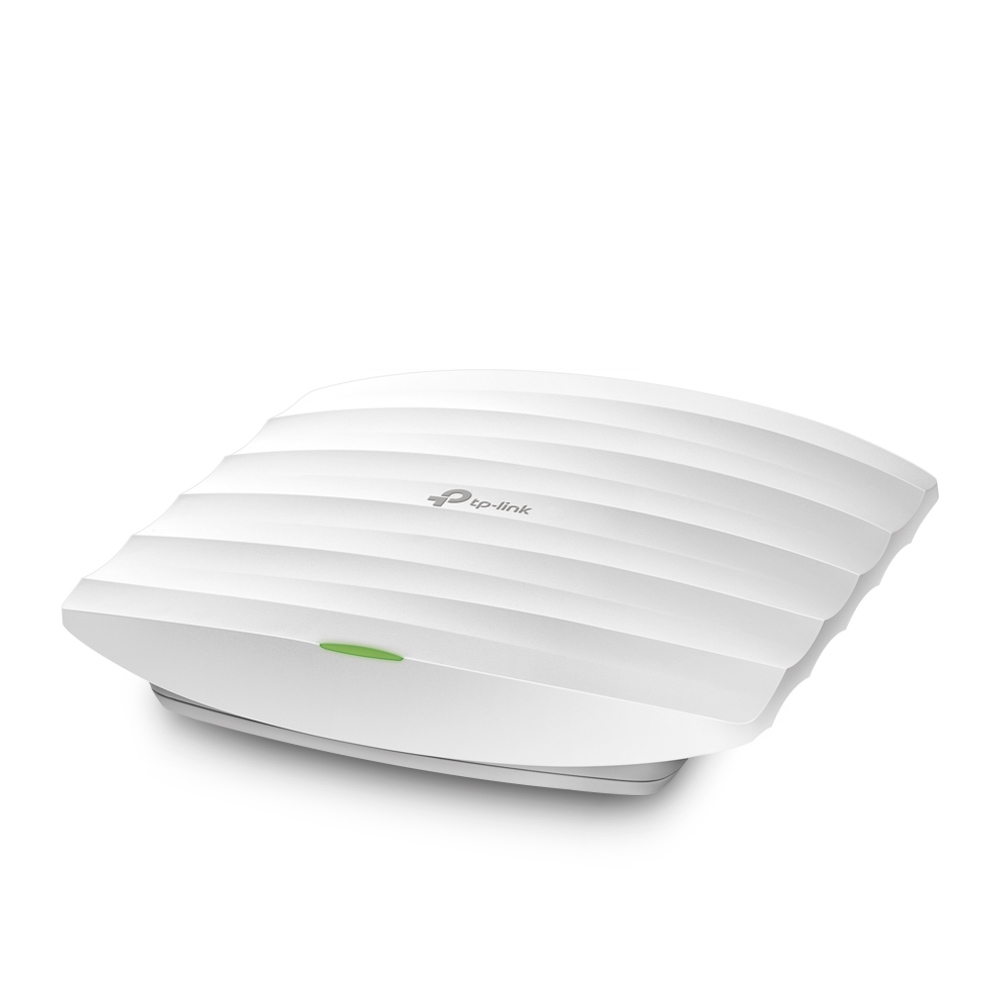

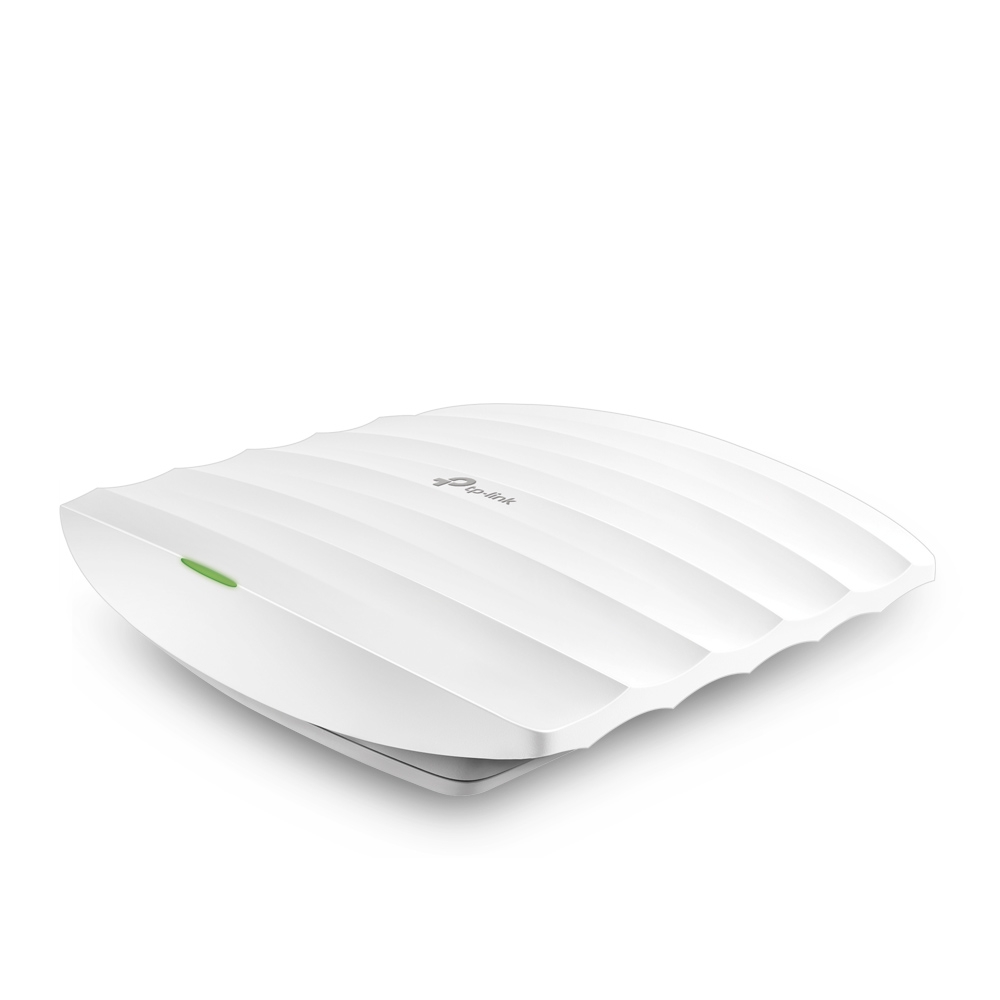

Tplink Omada EAP225 AC1350 MU-MIMO Gigabit Ceiling Mount Access Point

The TP-Link Omada EAP225 is a business-grade AC1350 ceiling mount access point designed to deliver reliable, high-performance Wi-Fi for hotels, offices, schools, and other demanding environments. With MU-MIMO support and a Gigabit Ethernet port, it provides a smooth, stable connection for bandwidth-heavy tasks like video conferencing and HD streaming.

Key specifications

• Wireless Standard: 802.11ac Wave 2 (Wi-Fi 5) with backward compatibility
• Total Speed: AC1350 — 450 Mbps on 2.4 GHz + 867 Mbps on 5 GHz
• MU-MIMO: Yes, for simultaneous data streaming to multiple devices
• Ethernet Port: 1× Gigabit (10/100/1000) port with PoE (802.3af) support
• Mounting: Ceiling mount design with included hardware
• Management: Standalone mode or via Omada SDN controller (software, hardware, or cloud)
• Power Options: Passive PoE injector included, or 802.3af PoE switch

Performance & Coverage

• Dual-band design reduces interference and improves overall throughput
• Beamforming technology focuses signals toward connected devices for stronger, more reliable connections
• Supports up to 128 concurrent clients per access point
• Ideal for medium-sized spaces such as offices, lobbies, and classrooms

Management & Security

• Omada app and cloud access allow easy setup and monitoring from anywhere
• Captive portal, VLAN tagging, and multiple SSIDs (up to 16) for network segmentation
• WPA/WPA2/WPA3 encryption support for secure connections
• Band steering automatically moves clients to the less congested 5 GHz band
