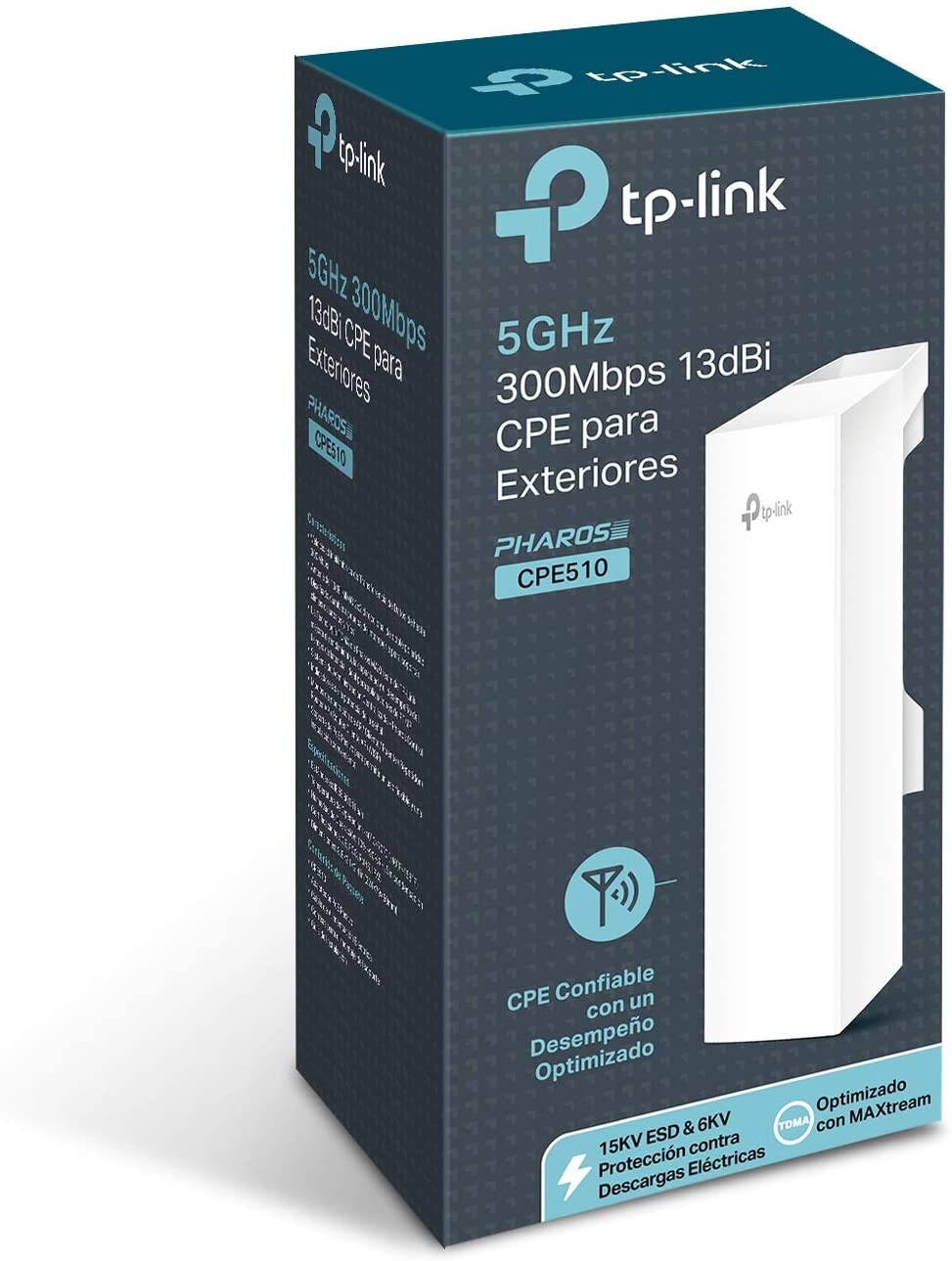

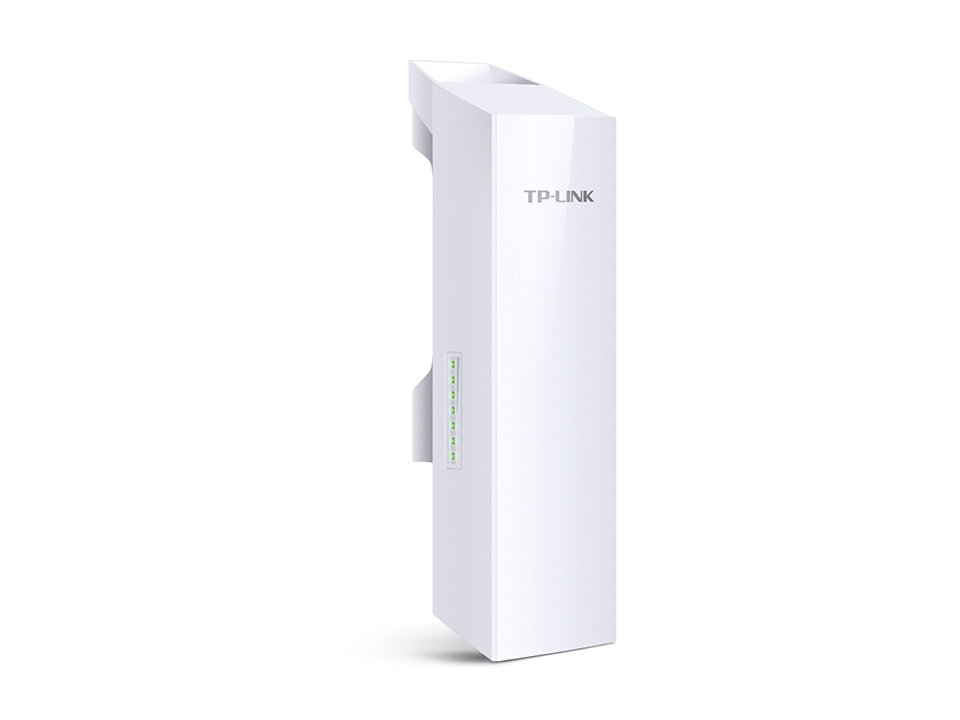

Tplink Pharos CPE510 300Mbps 13 dBi CPE Outdoor Access Point

The TP-Link Pharos CPE510 is a high-performance outdoor wireless access point designed for long-range point-to-point and point-to-multipoint bridging. With a 13 dBi directional antenna and 300 Mbps throughput, it is an ideal solution for extending Wi-Fi coverage across large distances, making it perfect for outdoor surveillance, campus networks, and remote building connectivity.

Key specifications

• Wireless standard: 802.11n, up to 300 Mbps
• Antenna: 13 dBi dual-polarized directional panel antenna
• Interface: 1 × 10/100 Mbps Ethernet port (PoE powered)
• Power method: Passive PoE (24 V) with included adapter
• Operating modes: Access Point, Client, Bridge, Repeater
• Enclosure: Outdoor weatherproof housing (IP65-rated)
• Management: Pharos Control central management software support

Performance & coverage

• Long-range wireless transmission with dedicated 13 dBi antenna
• TDMA-based Pharos protocol reduces latency and improves throughput in point-to-multipoint setups
• Supports up to 60+ concurrent clients per unit
• Ideal for distances up to several kilometers in clear line-of-sight conditions

Design & durability

• Weatherproof enclosure rated for outdoor installation
• Adjustable mounting bracket for flexible alignment
• Operating temperature range suited for tropical climates
• LED indicators for signal strength and link status
